Water pump rebuilding service.

R. J. Jan 20, 2015

  1. R. J.

    R. J. Senior Member

    7,744
    283
    128
    :hello: I have a 35 mm mechanical ceramic seal coming from Kawboy. He got it from the SnakeDoctor a few years back. He said that it has a part # on the box. I'm going to try to find more by cross referencing it with different suppliers. I found 3 suppliers. #1. http://store.gaddisinc.com/?gclid=CKDTornG_tMCFdc8gQod4t8DUA #2. http://sealtecgroup.com/products/standard-seals/ #3. http://sealryt.com/?_vsrefdom=adwords&gclid=CP2VuOTJ_tMCFVQlgQod-ckEUA Also I found another Kaw seal part # 49063-S004 from a 2004 KLX 400. http://www.motosport.com/oem-parts/part-number/49063-S004 I ordered one. Price $25.14. I sent a PM to the Snake Doctor but have not heard from him as of yet. He was last on the site 2/17. I hope he is OK:

  2. R. J.

    R. J. Senior Member

    7,744
    283
    128
    :hello: Kawboy I received the water pump & parts today. Thank's. I'll do your pump later on in the week. The box for the new 35 mm seal doesn't really say who the manufacture is unless it's called Mechanical Seal :laughing7:. I made some calls today & searched the WEB with no luck. Also I ran the #s on the box & had no luck. I found another KAW OEM part # 49063-1001. Price $70.87.:pain10: It is for 79 to 82 KZ 1300 & 83 to 88 Voyager 1300. http://www.motosport.com/oem-parts/part-number/49063-1001 I'm not ordering that one. :laughing7:. IMG_4240.JPG IMG_4241.JPG IMG_4242.JPG Here is the 49063-1001 on E Bay. http://www.ebay.com/itm/Kawasaki-49063-1001-SEAL-MECHANICAL-/282475374990?fits=Make:Kawasaki&hash=item41c4d8298e:g:2~sAAOSwGJlZFmNu&vxp=mtr By looking at the pic this may be the 35 mm. Figures the OEM one that we need would be the most expensive. :pain10:.

    Last edited: Dec 3, 2017
  3. kawboy

    kawboy Supporting Member Technical Author

    Yeah, I told you it was a pretty generic looking box.
    Absolutely no rush on mine.
    thanks

  4. R. J.

    R. J. Senior Member

    7,744
    283
    128
    Last edited: May 23, 2017
  5. R. J.

    R. J. Senior Member

    7,744
    283
    128
    :hello: I spent the morning again searching for the 35 mm seal. I found another supplier in Colorado. I'm waiting on return calls/E mails from 4 suppliers. http://www.rocketseals.com/Oil-Seal...rF45YUeA3WVpaXrEFjeZFZxYK8MJmlmTbAaAuBH8P8HAQ Also I called K&L to see if they could match one up for me. They said that they don't do that. Seems like these days no body does. :pain10:. I have 6 or so pumps that need the 35 mm seal. Is anyone else looking for this seal I'm about to just toss all these pumps in the trash. If I could I'd order them from the GPZ Zone across the pond but I can't because they go threw Google & they want me to delete my other 2 E mails. IMG_4260.JPG

    Last edited: Dec 3, 2017
  6. kawboy

    kawboy Supporting Member Technical Author

    What do you mean? :icon_scratch:

  7. R. J.

    R. J. Senior Member

    7,744
    283
    128
    :hello: All's I know is when I went to place an order it said something about letting Google ba ba ba. I didn't understand what they meant.

  8. Harriminator

    Harriminator Senior Member

    736
    119
    138
    :hello:Just my 2ct: searched a little and found this jap. company TOURMAX where all ceramic seal kits are named like WMS-90x where 'x' are diff. numbers for diff. bike brands; trick is to find out which is the 35mm without buying and measuring. Maybe this is dead end street but just wanted to mention.

  9. R. J.

    R. J. Senior Member

    7,744
    283
    128
    Thank's. Do you have a link/web site so that I can check them out.

  10. Harriminator

    Harriminator Senior Member

    736
    119
    138
    :hello:I just googled for 'tourmax' and got over shops to offers and sometimes lists, you can even search for WMS-901...WMS-909 to get hits (no ZL, ZX or so - we're too old, our bikes are too old, our minds are too...:laughing7:).

  11. R. J.

    R. J. Senior Member

    7,744
    283
    128

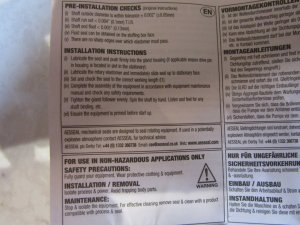

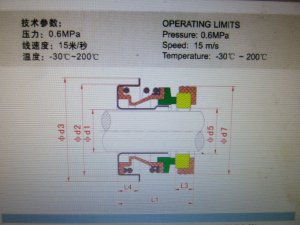

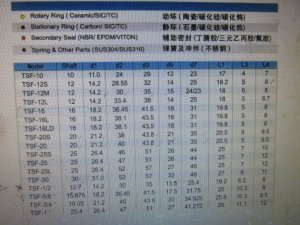

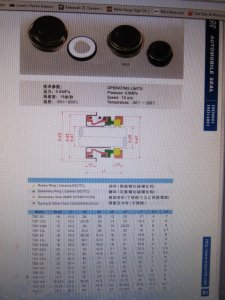

    :hello: I got the same thing. I think I found one. Check out size 0127-B on second line of the right chart in pic. Read the dimensions & refer to the drawing in the upper right hand corner. 20170524_091213.jpg The Manufacture is in the UK. The supplier is out of Golden CO. Seals Unlimited Inc. http://www.sealsunlimitedinc.com/ The person that I contacted is Bryant Fields. Phone # 800-346-1604. He is going to contact the manufacturer & get me a price quote. He is confidant that this seal will work. I E-Mailed him with all diminutions, pics of the seal & the water pump.

    Last edited: Nov 27, 2018
  12. Harriminator

    Harriminator Senior Member

    736
    119
    138
    :hello:That's cool...but d3=30 (Metric) - aren't you looking for 35 ? Btw: this 'view attachment #' isn't working for me (...not found) but I can open the pics; if that's the same then o.k.

  13. R. J.

    R. J. Senior Member

    7,744
    283
    128

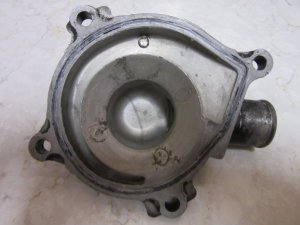

    :hello: The chart diagram pic of post # 84 or pic # 20 here is the one that Bryant sent me. In the chart part # 0127B line # 2 Row d3 the 30 mm measurement is the cup size & not the lip size. Here are the pics that I sent Bryant. If someone thinks that I should send him any other information let me KNOW. IMG_4248.JPG IMG_4247.JPG IMG_4249.JPG IMG_4250.JPG IMG_4251.JPG IMG_4269.JPG IMG_4270.JPG IMG_4271.JPG IMG_4261.JPG IMG_4262.JPG IMG_4263.JPG IMG_4264.JPG IMG_4265.JPG IMG_4255.JPG IMG_4252.JPG IMG_4266.JPG IMG_4267.JPG IMG_4253.JPG IMG_4254.JPG IMG_4272.JPG

    Last edited: May 24, 2017
  14. Harriminator

    Harriminator Senior Member

    736
    119
    138
    :hello:Now I see - thought it was by you. Not many customers are as detailed as you, you deserve rebate:thumbsup:.

  15. R. J.

    R. J. Senior Member

    7,744
    283
    128
    :hello:I figured that I've spent over 2 1/2 years & over 100 man hours looking for this seal. If anyone wants any of these mechanical ceramic seals put your order in NOW. I told Bryant that I needed a dozen for myself. Most likely the more I order the cheaper they will be.

    Last edited: May 24, 2017
  16. Harriminator

    Harriminator Senior Member

    736
    119
    138
    :hello:...and now you have some time for temp gauge tests?! :D

  17. R. J.

    R. J. Senior Member

    7,744
    283
    128
    :hello: No not yet. I'm still working on Ron's ZL 1000. I'm waiting on parts. Also I have my Grizzly to finish up. I have to take the 4 into one collector on the ZL to get welded. Some one done a poor job of welding it & it is leaking threw the welds.

  18. R. J.

    R. J. Senior Member

    7,744
    283
    128

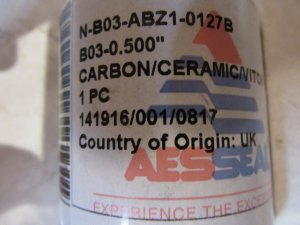

    :hello: Bryant got back to me on these 35 mm seals. They are $16.26 each. It will be about a 10 week turn around time frame. $16.26 x 12 = $195.12 + 14.95 shipping = $17.50 each. When I get the 8 pumps rebuilt I'll be putting them on E Bay so that I can recoup some of my money. Not counting these seals I've spent close to $300 on parts & had only about 6 people show interest not counting the 8 or so pumps that I did for other members. Also these 8 pumps I bought off E Bay cost me around another $280. I did this so I would have pumps on hand for faster turn around time. My labor rate for members will still be $30. $80 parts, & $15 for return shipping with $150 of insurance. Total $125. Parts include 3 O-rings, 1 oil seal, 2 bearings, 1 mechanical cermaic seal & 1 C-clip.

    Last edited: Sep 24, 2018
    kvalheim likes this.
  19. markus56

    markus56 ZL-OA Co-owner Staff Member Administrator Super Moderator Supporting Member

    3,191
    134
    158
    I'm in for a couple of pumps when you get them ready.

  20. R. J.

    R. J. Senior Member

    7,744
    283
    128
    :hello: OK: That's great. I forgot to mention that I would like the old pump for core exchange minus the cover that way I'll always have pumps on hand. Some time in the middle of August I should receive the 35 mm. mechanical seals. In the mean time I will inventory my stock & order the OEM parts that I'm low on.
